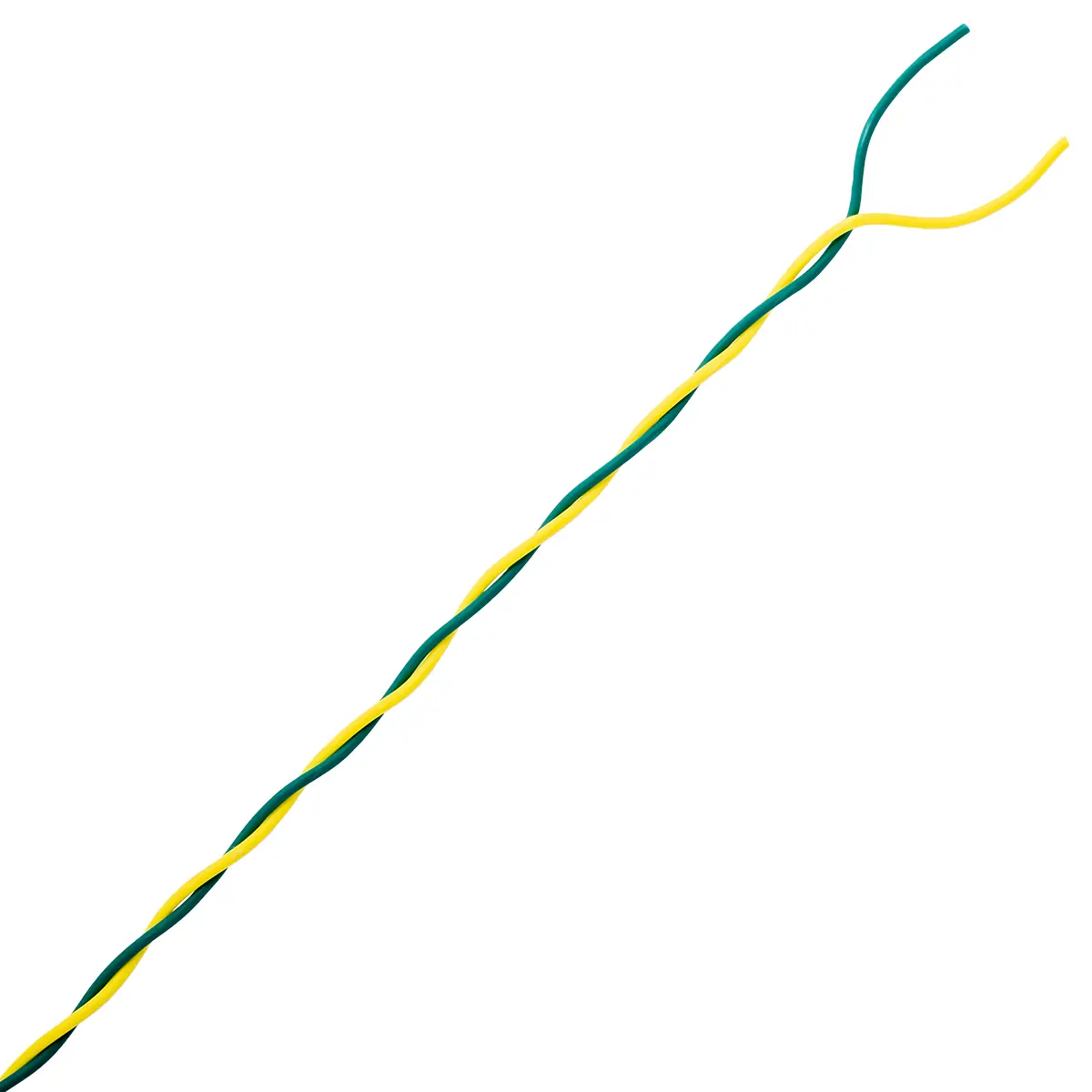

Extra-thin-wall cross-linked polyolefin over bare copper, for automotive work
where reduced diameter and weight matter. A good choice where heat and flame
resistance are stringent requirements, such as the engine compartment, and a
lower cost alternative to Tefzel.
Specifications
- Specification: SAE J1128 TXL
- Conductor: Bare copper per ASTM B3
- Insulation: Cross-linked polyolefin, extra thin wall
- Temperature rating: −40°C to 125°C (−40°F to 257°F)
- Voltage: Low voltage, 60 V DC or less
- RoHS: Compliant
22 AWG Dimensions
| Conductor area, minimum | 681 circular mils
0.35 mm² |
| Insulation thickness, nominal | .016 in
0.40 mm |
| Insulation thickness, minimum | .011 in
0.28 mm |
| Cable OD, maximum | .067 in
1.70 mm |
Inch equivalents are converted from the published metric values.
Automotive Specifications
- SAE: J1128
- Chrysler: MS-8288
- Ford: M1L-123A
Applications
- Low tension automotive cable, −40°C to 125°C
- Engine compartment and chassis harnesses
- Motorsport and race car wiring
- Trailer, marine and general 12 V wiring
