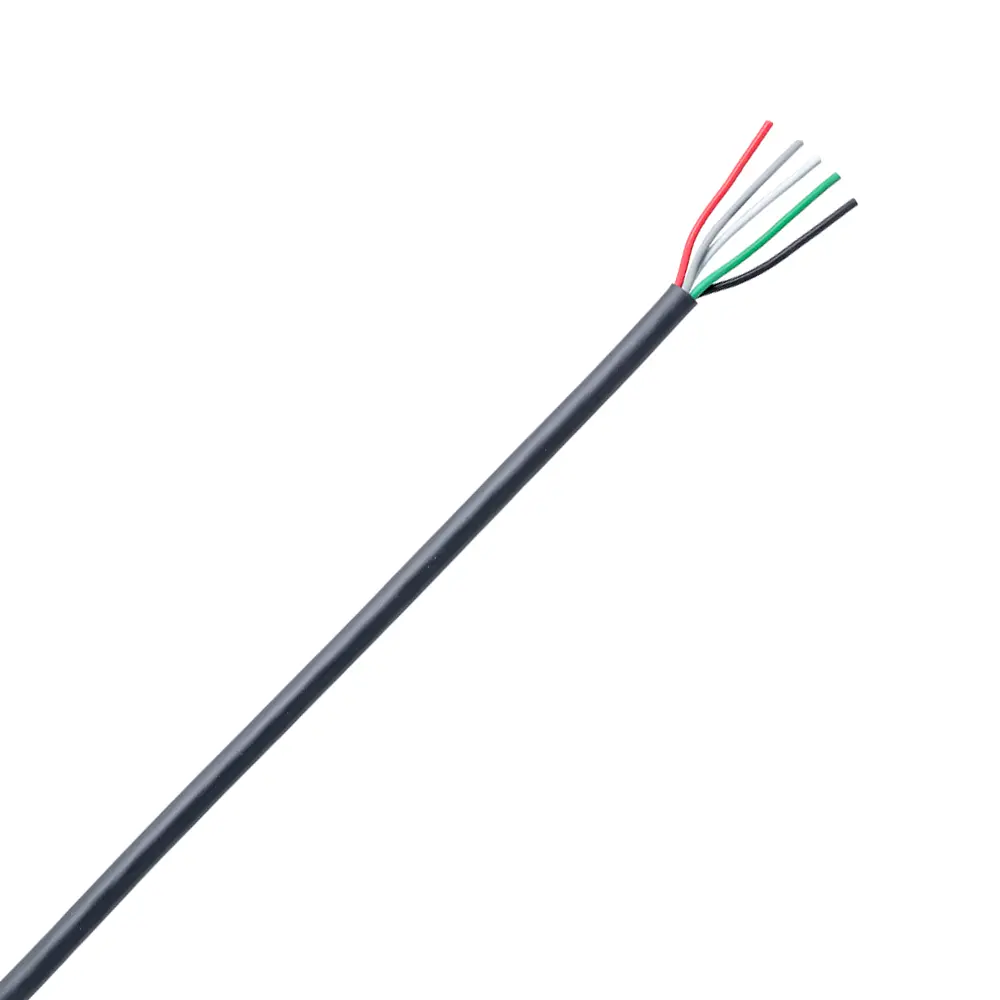

TXL 20 Gauge 5 Conductor Cable - TXL-20X5
TXL 20 Gauge 5 Conductor Cable - TXL-20X5
Questions about this part?

Fitment, mating parts, tooling, certs: a wire specialist will get back to you.

TXL-20X5 TXL 20 AWG 5 Conductor Jacketed Cable, In Stock

PROWIREUSA
Item No. TXL-20X5
$1.069 / FT
Features & details

5-conductor 20 AWG TXL Jacketed Cable.

  • Voltage Rating: 600 VDC
  • Conductor Material: Stranded bare copper
  • Insulation: XLPE
  • Jacket Material: Black flexible PVC, UV/oil/moisture resistant, VW-1 rated
  • Temperature Range: -30°C to 105°C (221°F to -86°F)
  • Nominal O.D.: 0.240" (6.09 mm)
  • Weight: Approx. 44 lbs. per 1000'
  • Stranding: 19/30
  • Conductor Colors: Black, Red, White, Green, Gray
  • Shielding: O/A Mylar Tape with 0.024” wall
  • Filler: Fibrillated polypropylene in each interstice
