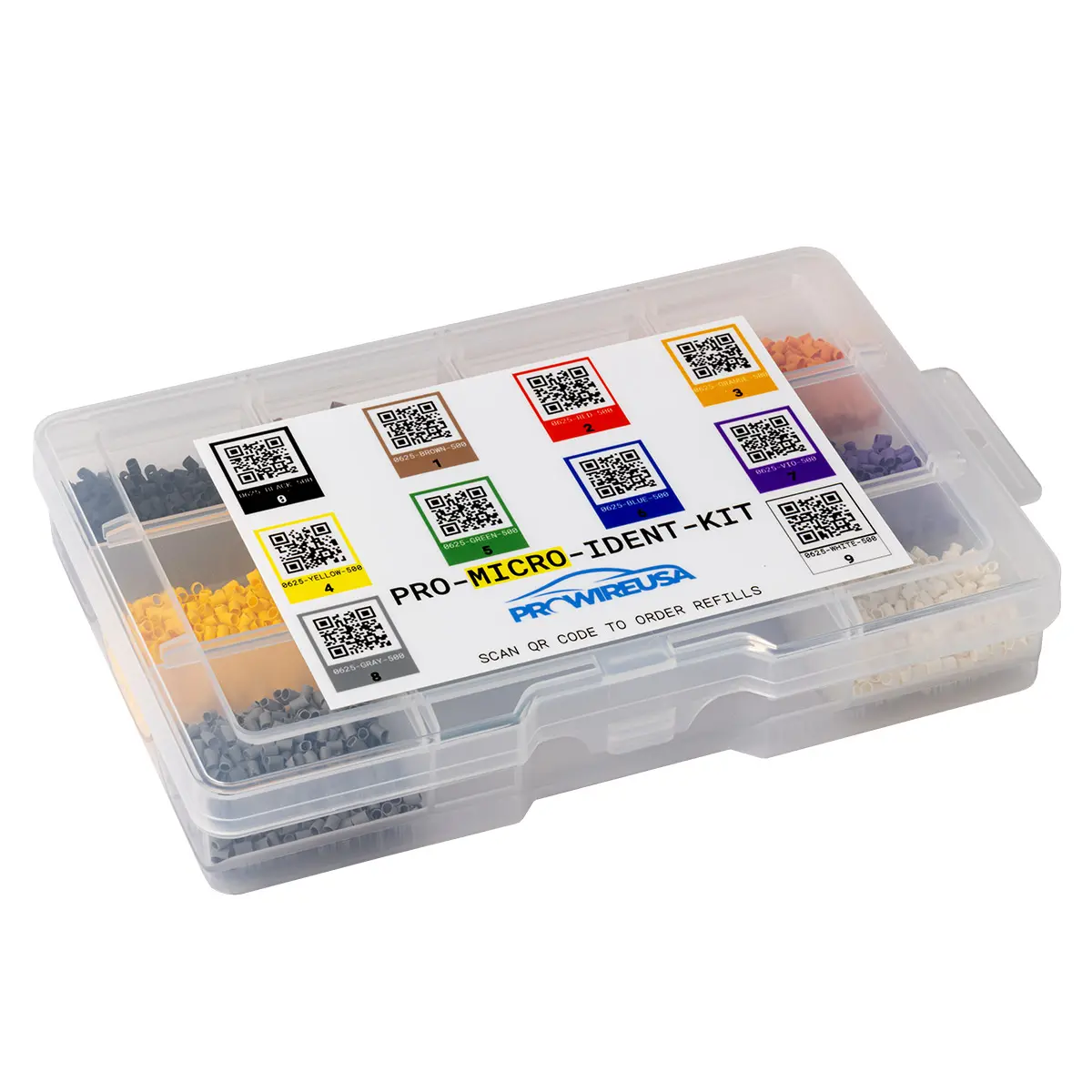

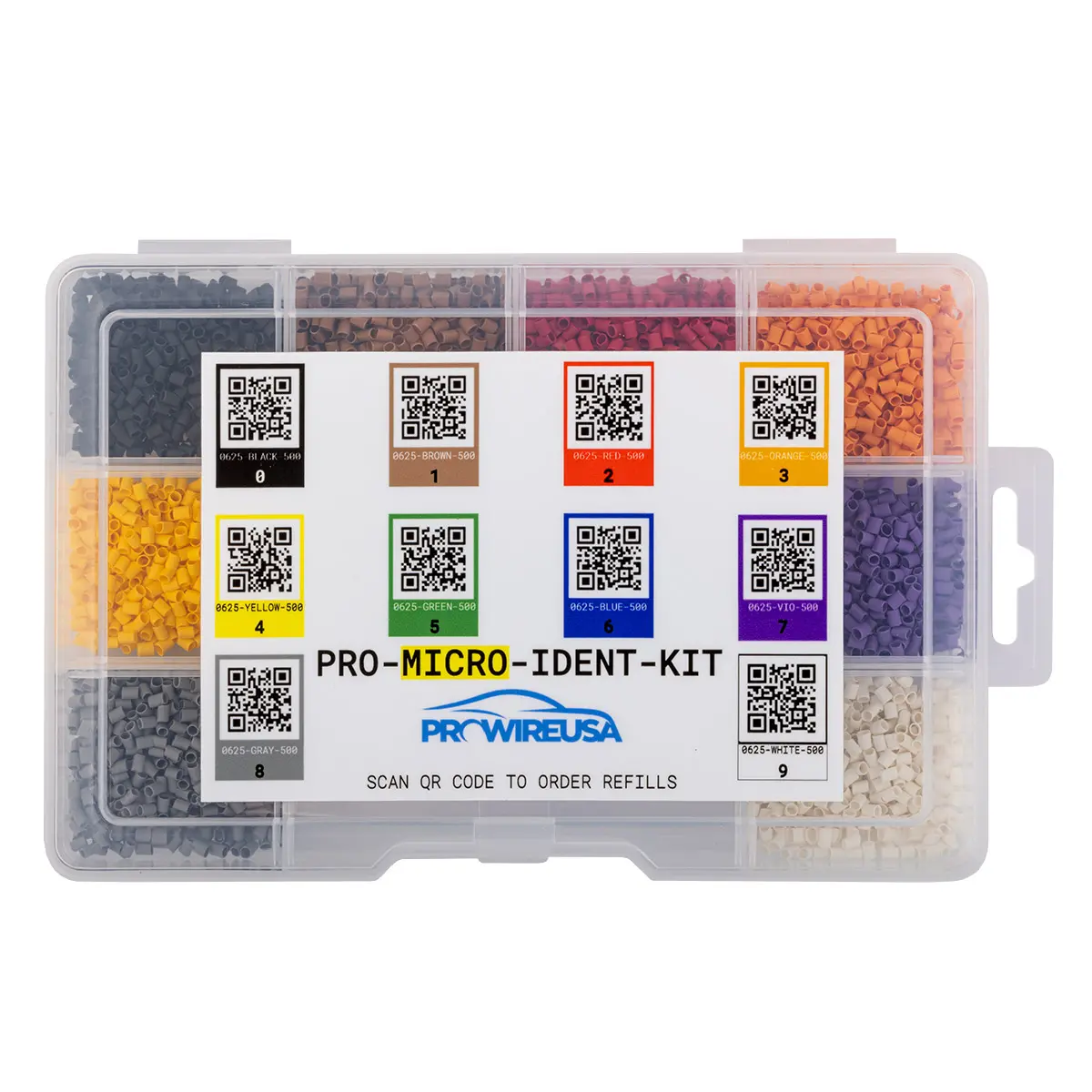

PRO-MICRO-IDENT-KIT 1/16" Micro INDENT Kit 10 COLORS

Our Pro-MICRO-Ident-Kit is useful when you have many of the same color wires in the same loom. Typically you would want to identify a circuit number or cavity/ terminal position. All our marker kits are built in-house, using our automated CNC cutting machines to cut each marker to length. We use only the highest quality 2:1 heat shrink tubing in our kits.

Each colored marker has a numeric value assigned to it. For instance, if you wanted to identify a circuit number of 386 (installed left to right), you would use the following combination of markers:

You can find all the color code references on page 8 of the MIL-STD-681F Rev. F Color Code Designators For Wire (PDF, 204 KB)

 Pro-Ident-Kit uses 1/16" (2:1) heat shrink tubing to suit the following wire sizes and types:

• M22759/32 (24-30AWG)
• M22759/16 (24AWG)

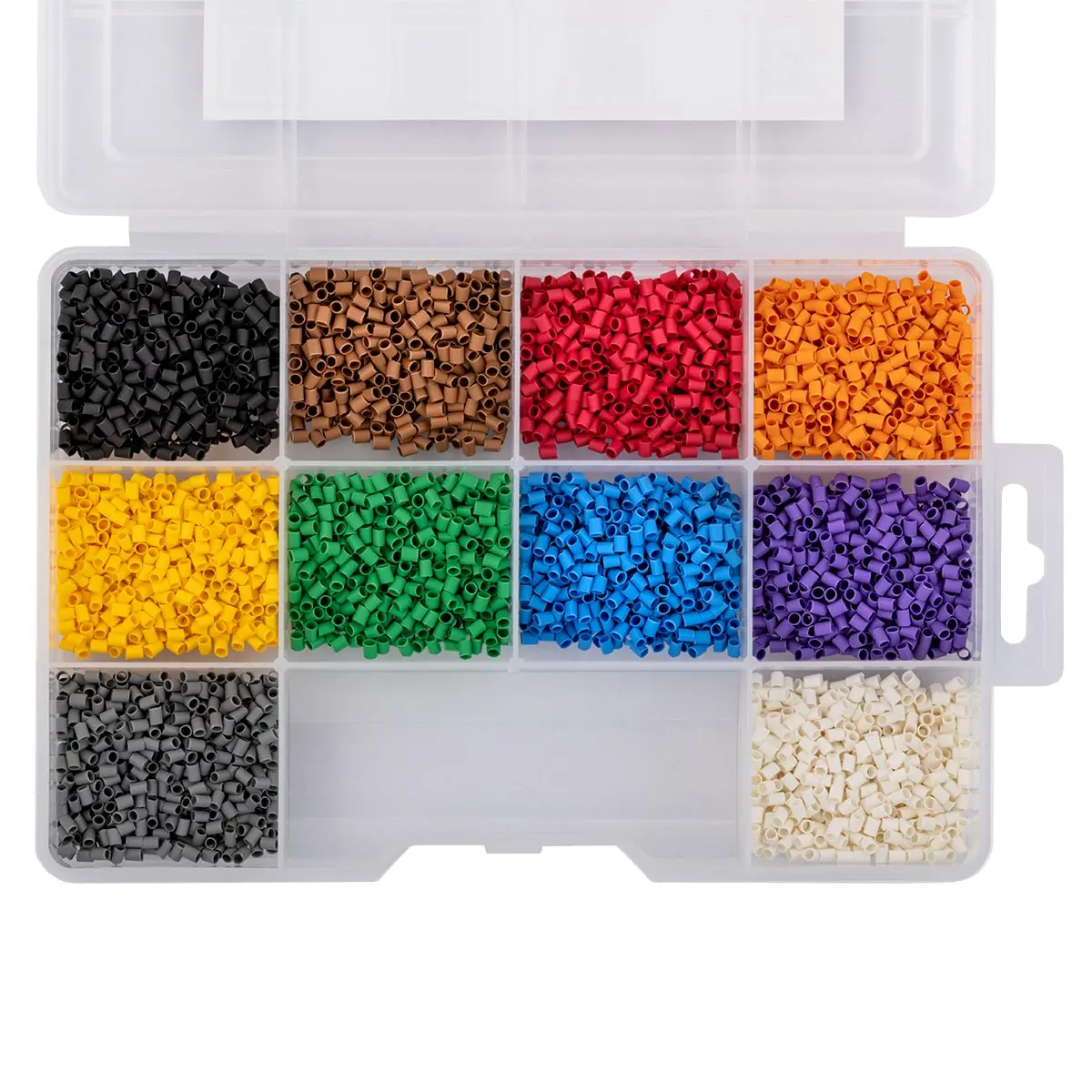

• Each kit comes with 500 pcs of all 10 colors totaling 5000 markers, and we even have low-cost refills available in 500 PC bags. See related items for refills.
• Click Here for our standard Pro-Ident-Kit which is suitable for 24-12AWG wire
