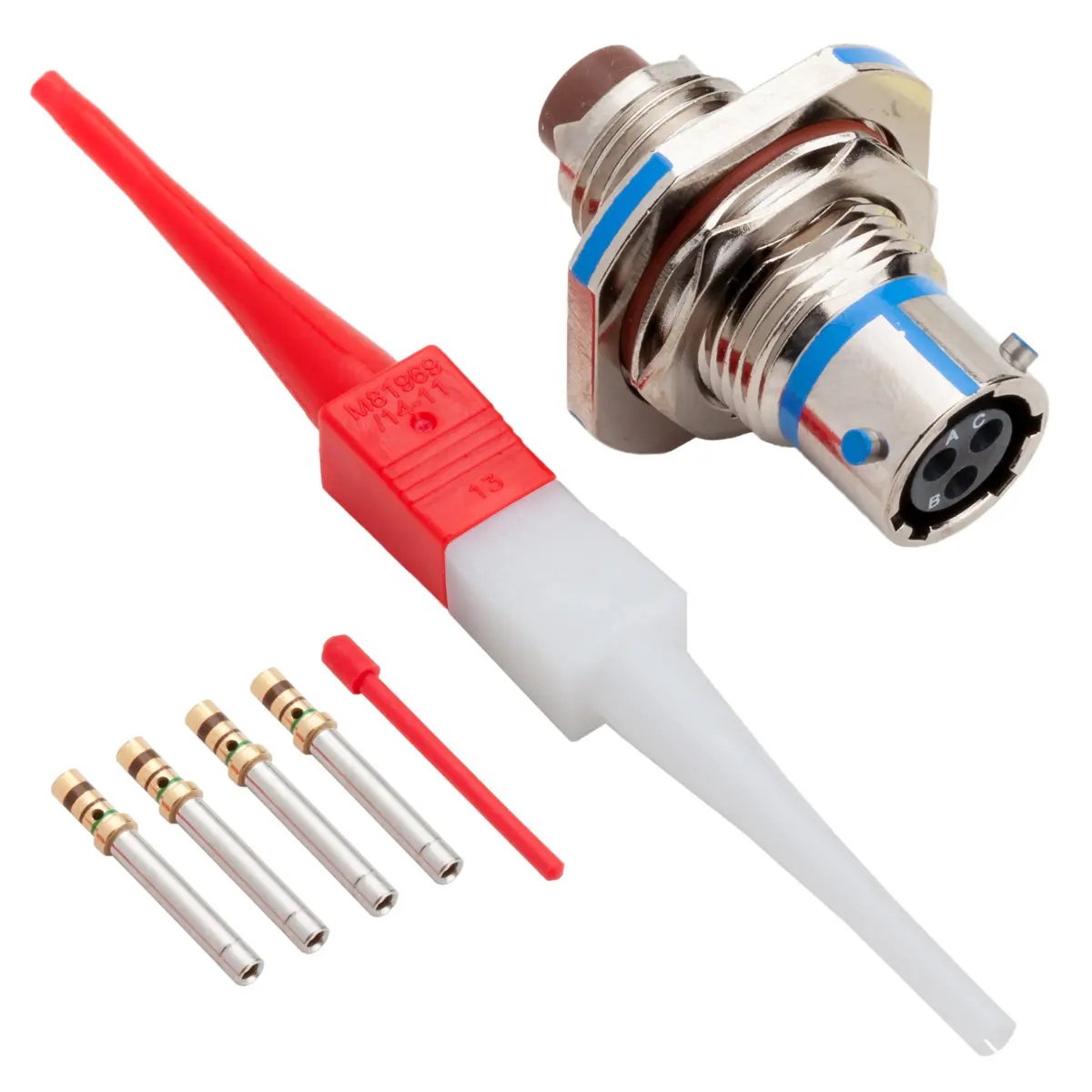

The MS3474L8-98S is a 3-way jam nut receptacle circular connector kit with socket (female) contacts. The connector housing is electroless nickel aluminum. To create a mated pair, a plug connector kit is required.
MS3474L8-98S Kit Includes
- (1) 3-Way Jam Nut Receptacle Connector Body.
- (3) Size 20 socket (female) contacts, 22-18 AWG, 7.5 A ea. M39029/5-115
- (1) Insert/Removal Tool M81969/14-02
- (1) Cavity Plug MS27488-20-2 The quantity included varies.

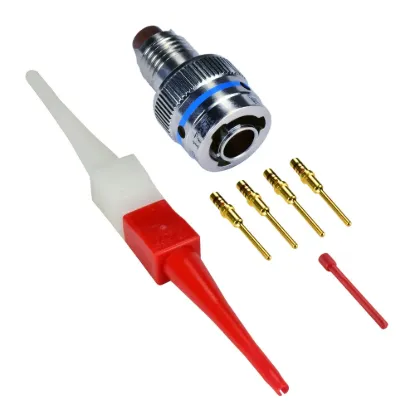

Mating Connector
Please refer to the Mating Connectors tab on this page.
Required Crimp Tooling
- DMC Crimp FrameAF8 requires TH1A
- DMC TurretTH1A requires AF8
- DMC PositionerK1S requires AFM8 (size 20 contacts only)
- DeutschHDT-48-00 all-in-1 tool.
- Econo Tool18890 size, 20 contacts only.
Technical Information
- The Specifications tab lists technical data as well as other useful information.
- The Documents section lists CAD models, technical drawings, and catalog pages when available.
Notes
- Please refer to the Mating Connectors, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.
