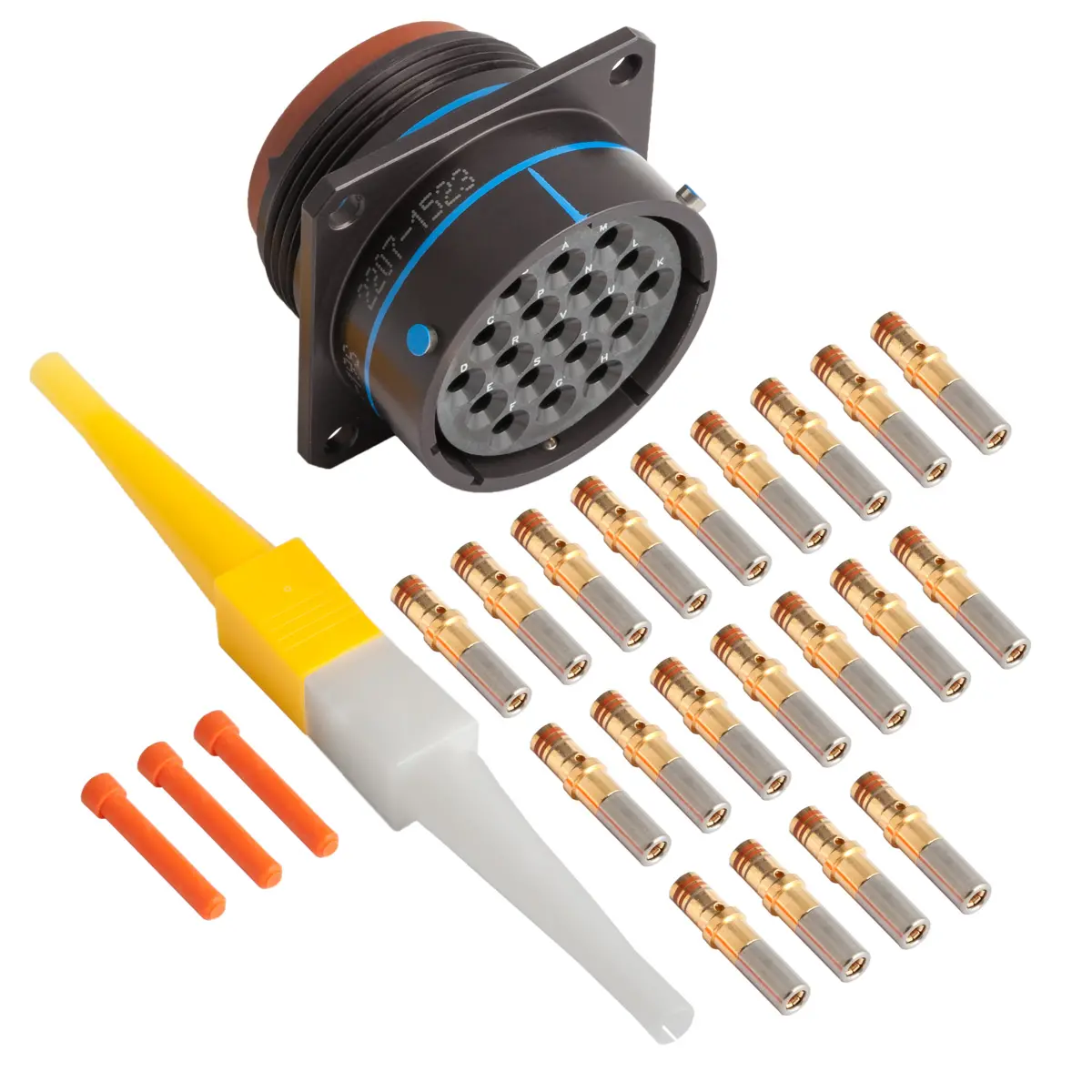

The MS3470A24-19S is a 19-way flanged receptacle circular connector kit with socket (female) contacts. The connector housing is black anodized aluminum. To create a mated pair, a plug connector kit is required.
MS3470A24-19S Kit Includes
- (1) 19-Way Flanged Receptacle Connector Body.
- (19) Size 12 socket (female) contacts, 14-12 AWG, 23 A ea. M39029/5-118
- (1) Insert/Removal Tool M81969/14-04

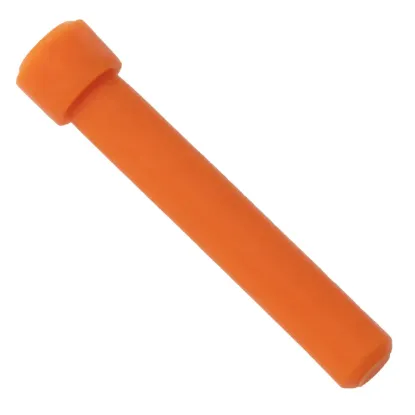

- (1) Cavity Plug MS27488-12-2 The quantity included varies.

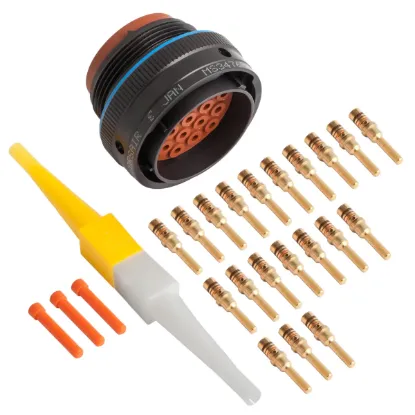

Mating Connector
Please refer to the Mating Connectors tab on this page.
Required Crimp Tooling
- DMC Crimp FrameAF8 requires TH1A
- DMC TurretTH1A requires AF8
- DeutschHDT-48-00 all-in-1 tool.

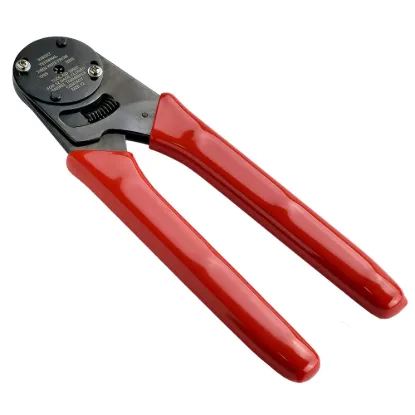

- Econo Tool18860 size, 12 contacts only.
Technical Information
- The Specifications tab lists technical data as well as other useful information.
- The Documents section lists CAD models, technical drawings, and catalog pages when available.
Notes

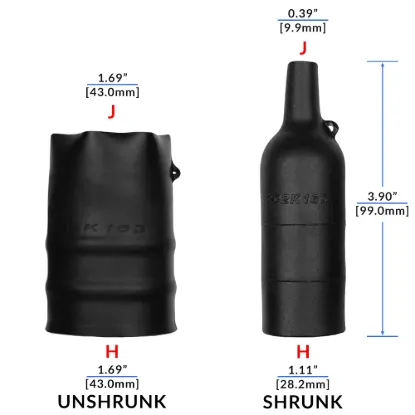

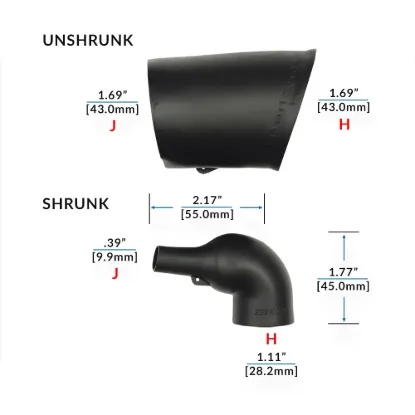

- Please refer to the Mating Connectors, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.
