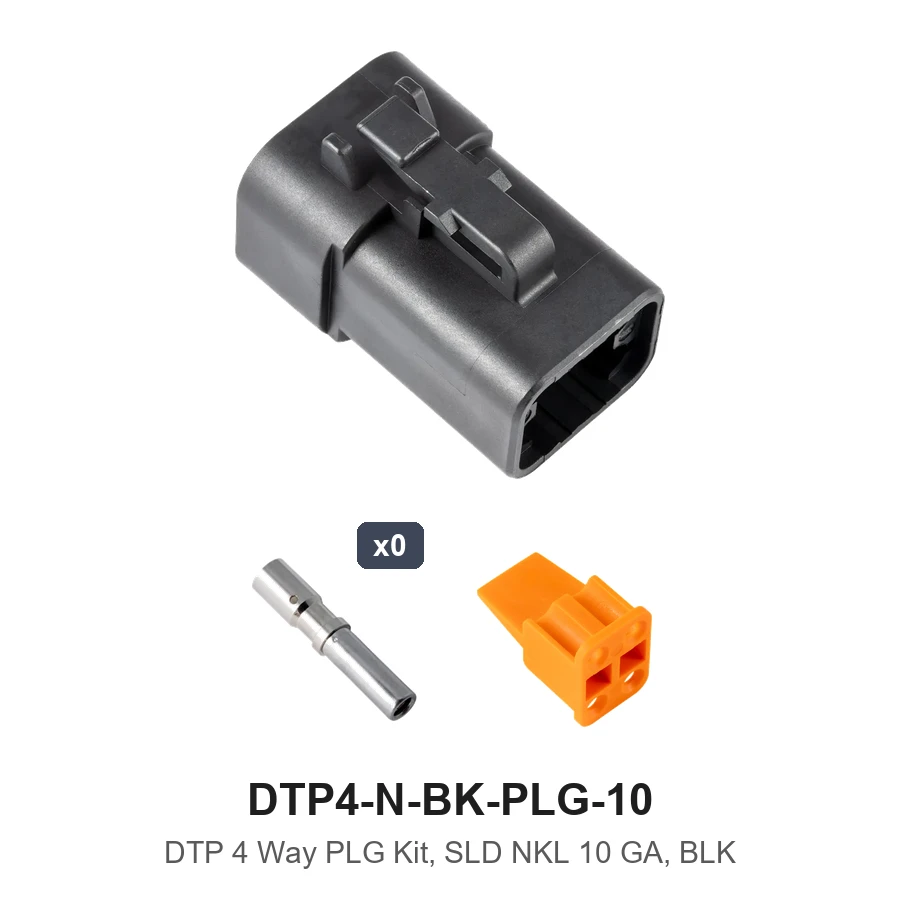

DTP4-N-BK-PLG-10 is a ProWireUSA DTP connector kit built from genuine TE Connectivity/DEUTSCH parts. It includes everything to build one 4-way plug: the plug housing, its wedgelock, and the socket contacts, packed together so nothing is missing when you sit down to build the harness.
Need a different size, plating, color or boot option? Build your own kit with our Deutsch Kit Builder Tool
To purchase a master kit, also known as a shop kit, please visit our Master Kits Page
DTP4-N-BK-PLG-10 Details
- Series: Deutsch DTP
- Kit Type: Plug Kit
- Positions: 4
- Contacts: Solid barrel, size 12, nickel plated, 10 AWG
- Housing Color: Black
- Keyway: A
- Mounting: Inline / Free Hang
Recommended Tools (sold separately)
- 18860 - DEUTSCH DTP/MIL SIZE 12 CRIMP TOOL
- DT-RT1 - DT DTM DTP WEDGELOCK REMOVAL TOOL
The 10 AWG solid contacts in this kit crimp with the 18860 tool: its rear collar must be adjusted slightly to locate the contact correctly before crimping. The HDT-48-00 crimp tool is not compatible with these contacts.
Optional Add-Ons
- 114017 - DT/DTP SIZE 16/12 CAVITY SEALING PLUG
Technical Information
- Each part in this kit has its own page with TE's datasheet and 3D CAD model under Documents.
- DTP series connectors are compatible with Amphenol ATP series connectors and related accessories.
