Assembly Manual
Deutsch DT Series Assembly Instructions (PDF, 10,409 KB)
Deutsch Heat Shrink Boots Pictorial
| Deutsch DT Series Heat Shrink Boots (PDF, 564 KB) |
Deutsch Rubber Boots
| Series | No. Of Positions | Wire Range Awg | Max Amps Per Contact | Contact Size |
|---|---|---|---|---|

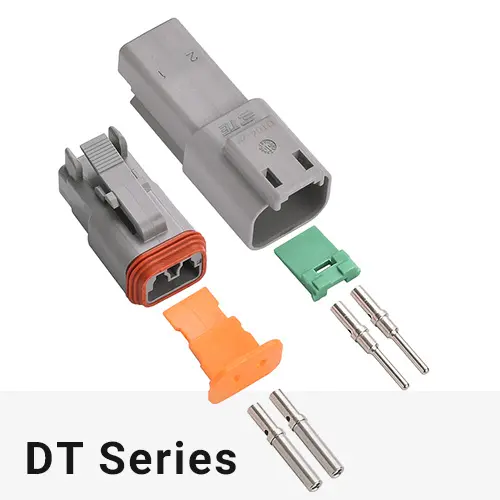

| DT | 2,3,4,6,8,12 | 20-14 | 13 | 16 |

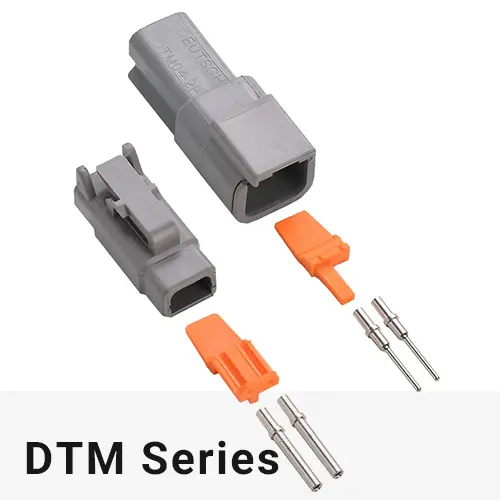

| DTM | 2,3,4,6,8,12 | 22-16 | 7.5 | 20 |

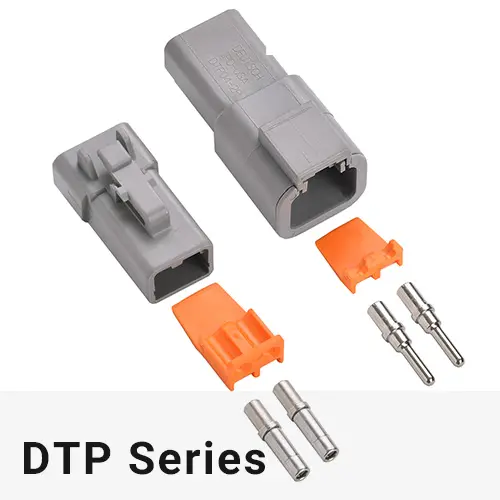

| DTP | 2,4 | 14-10 | 25 | 12 |

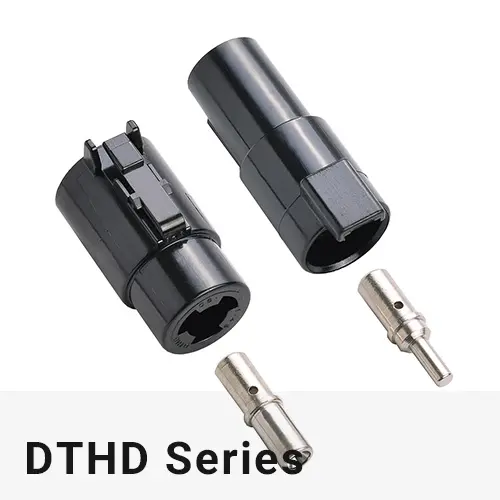

| DTHD | 1 | 14-6 | 25-100 | 12-4 |
| Kit Type | Description |
|---|---|
| Full | Plug and receptacle with contacts and wedgelocks |
| Plug | Plug connector only with contacts and wedgelocks |
| Receptacle | Receptacle connector only with contacts and wedgelocks |
| Flanged* | Plug and flanged receptacle with contacts and wedgelocks |
| Flanged Receptacle* | Flanged receptacle only with contacts and wedgelocks |
| * Flanged receptacles only available in select series and positions | |
| Terminal Type | Description |
|---|---|
| Solid | Solid contacts that use an 8 way indent crimp tool, also know as machined contacts |
| Stamped | Fold over type contacts that be crimped with generic crimp tools in addition to OEM tooling |
| Terminal Plating | Description |
|---|---|
| Gold | Gold plated steel contact offer improved performance over nickle in extreme conditions. |
| Nickle | Nickle plated steel |
| Housing Color | Description |
|---|---|
| Gray | Gray is the standard keyway orientation for DT,DTM,DTP |
| Black | Black is typically an alternate keyway and usually wont mate with gray connectors |
