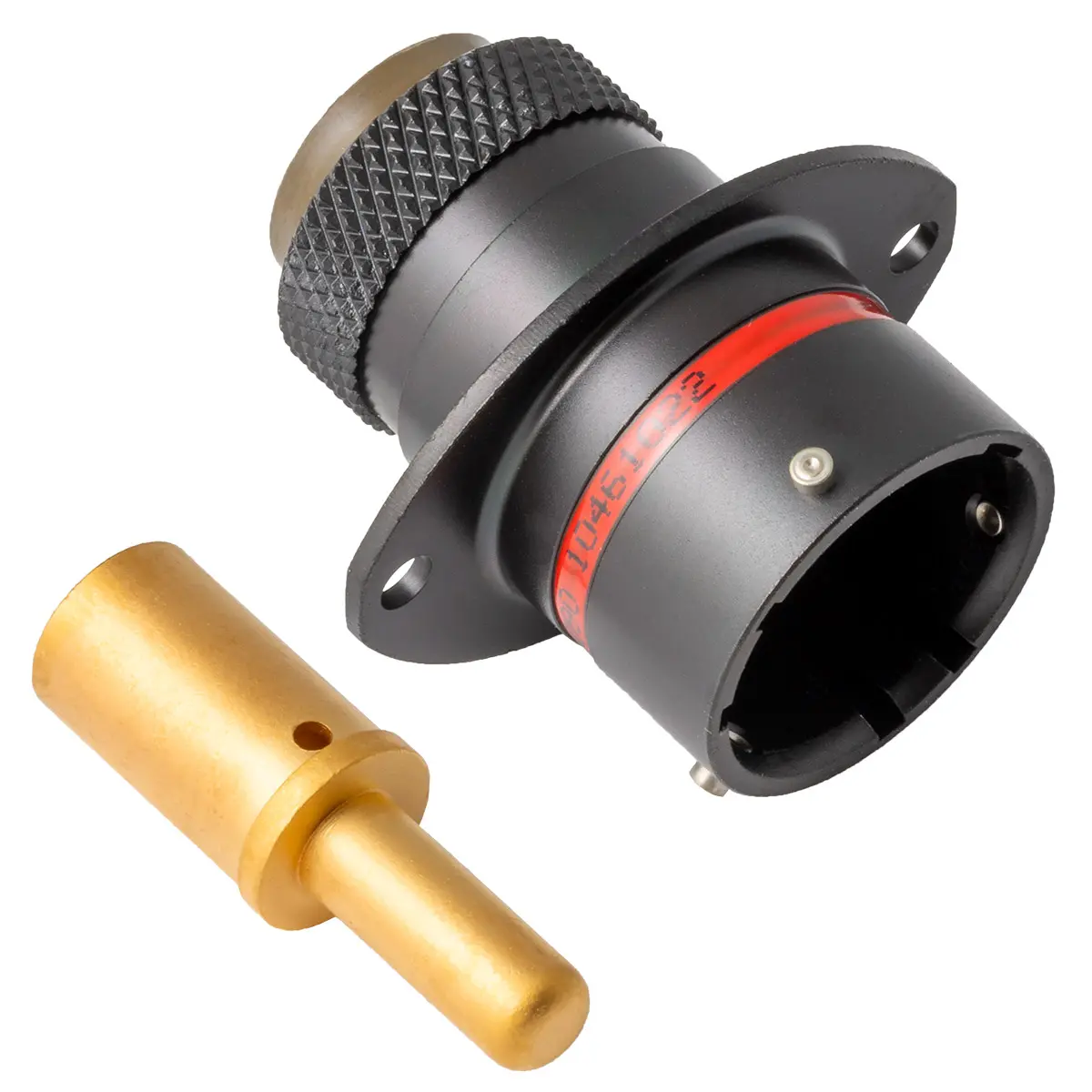

ASHD,1 Way,FLG,Pin,N Key,Red,35MM - ASHD014-1PN-C35
ASHD,1 Way,FLG,Pin,N Key,Red,35MM - ASHD014-1PN-C35
Questions about this part?

Fitment, mating parts, tooling, certs: a wire specialist will get back to you.

ASHD014-1PN-C35 ASHD,1 Way,FLG,Pin,N Key,Red,35MM

Deutsch
Item No. ASHD014-1PN-C35
$146.712 / EA
Product specification
Keyway N (Red)
Series / Range ASHD
Shell Size 14
Wire Range (AWG) 2
Contact Gender Pin (Male)
Shell Style Flanged Oval Receptacle
Shell Plating Zinc (Black)

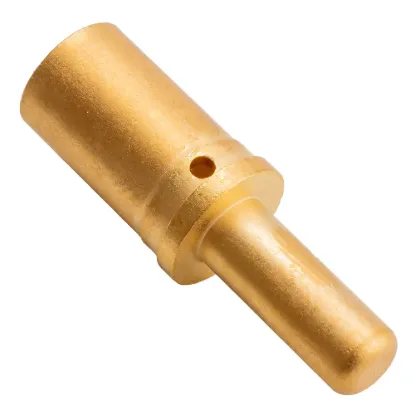

Replacement Contacts 605660
Insert Arrangement ASHD14-1
No. Of Positions 1
Contact Size 0
90º Shrink Boot 222K152-25-0
Connector O.D. 1.063" (27 mm)
Current Rating Per Contact 300 A
Receptacle Gasket GV-14
Insert / Removal Tool 610136-TOOL
MFG. TE Connectivity
Mating Plug Connector ASHD614-1SN-C35
Nut Plate AS-14
Panel Cutout .984" (25 mm)

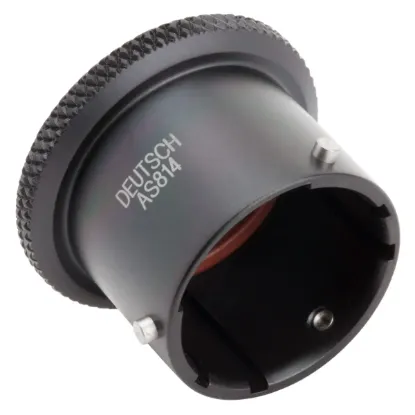

Protective Cap AS814
Shell Material Thermoplastic
Straight Shrink Boot 202K153-25-0
Termination Style Crimp

Related parts

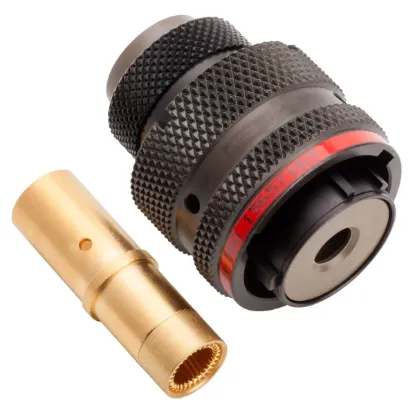

ASHD,1 Way,PLG,Pin,N Key,Red,35MM - ASHD614-1SN-C35

ASHD,1 WAY,PLG,PIN,N KEY,RED,35MM

ASHD614-1SN-C35
$278.00
Out of Stock - on backorder and will be dispatched once in stock.
ASHD,1 WAY,PLG,PIN,N KEY,RED,35MM
ASHD Contact Removal Tool - 610136-TOOL, image 1 of 2

ASHD CONTACT REMOVAL TOOL

610136-TOOL
$82.77
Out of Stock - on backorder and will be dispatched once in stock.
ASHD CONTACT REMOVAL TOOL
Lipped Straight Boot - 202K153-25-0

LIPPED STRAIGHT BOOT

202K153-25-0
154 Each In Stock
LIPPED STRAIGHT BOOT
90° Lipped Boot - 222K152-25-0

90° LIPPED BOOT

222K152-25-0
359 Each In Stock
90° LIPPED BOOT
