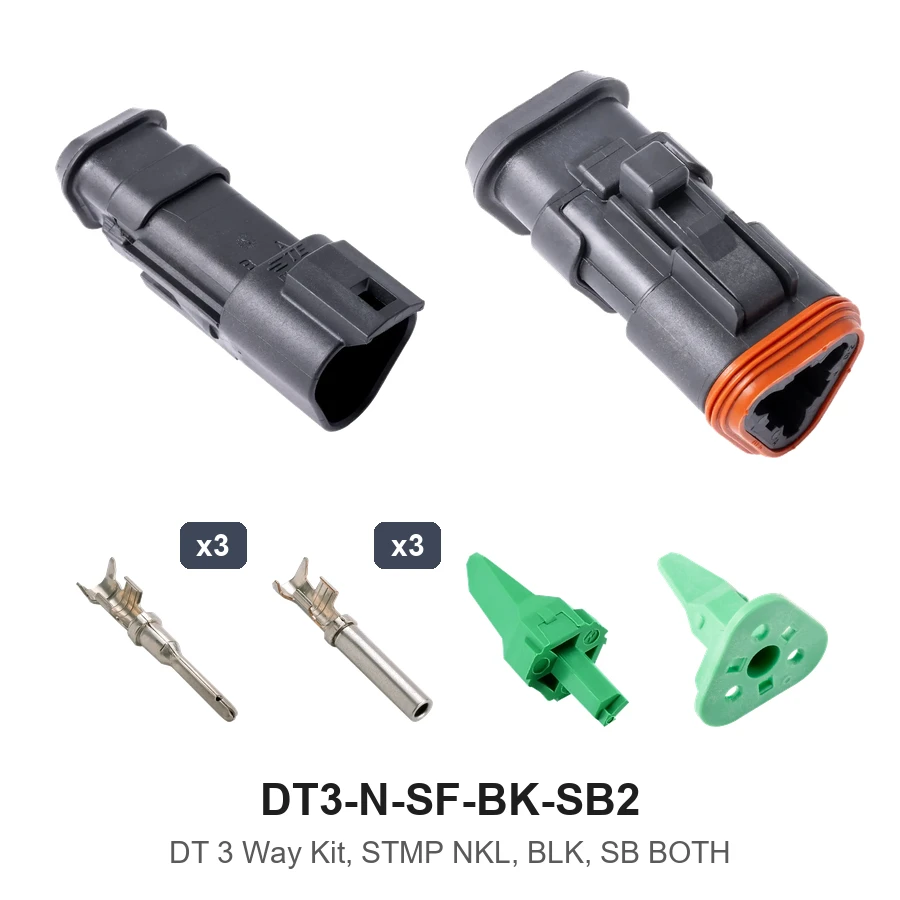

DT3-N-SF-BK-SB2 is a ProWireUSA DT connector kit built from genuine TE Connectivity/DEUTSCH parts. It includes everything to build one complete 3-way connector pair: the plug and receptacle housings, both wedgelocks, and the contacts for both sides, packed together so nothing is missing when you sit down to build the harness.
Need a different size, plating, color or boot option? Build your own kit with our Deutsch Kit Builder Tool
To purchase a master kit, also known as a shop kit, please visit our Master Kits Page
DT3-N-SF-BK-SB2 Details
- Series: Deutsch DT
- Kit Type: Full Kit
- Positions: 3
- Contacts: Stamped barrel, size 16, nickel plated, 18-14 AWG
- Housing Color: Black
- Keyway: A
- Mounting: Inline / Free Hang
- Shrink Boot Adapter: Shrink Boot Both Sides
This Kit Includes
- 1 x W3S-P012 - plug wedgelock (retention type)
- 3 x 1060-16-0122 - stamped nickel pin contacts
- 1 x DT06-3S-EP11 - 3-way plug housing (shrink boot adapter)
- 1 x W3P - receptacle wedgelock
- 3 x 1062-16-0122 - stamped nickel socket contacts
- 1 x DT04-3P-CE09 - 3-way receptacle housing (shrink boot adapter)
Recommended Tools (sold separately)
- DTT-16-00 - HAND CRIMP TOOL STAMPED CONTACTS SIZE 16
- 1028-CT - OPEN BARREL CONTACT CRIMP TOOL 24-14 AWG
- DT-RT1 - DT DTM DTP WEDGELOCK REMOVAL TOOL
Technical Information
- Each part in this kit has its own page with TE's datasheet and 3D CAD model under Documents.
- DT series connectors are compatible with Amphenol AT series connectors and related accessories.
